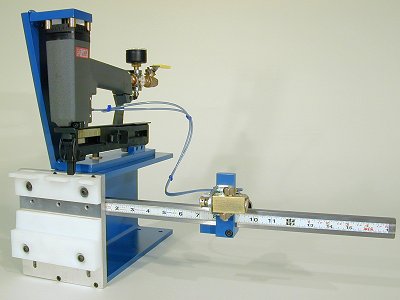

DSU100
Louver Stapling Machine

The DSU100 centers and attaches the tilt rod staple into the louver. Setting up the centering guide to the louver width and length is made simple, and virtually eliminates errors. The staple gun is triggered when the louver depresses the sensor button.

The DSU100 is a table top mounted unit that requires 70-120 psi/3scfm pneumatic. The depth of the 3/16" wide staples and the gun position are adjustable. The standard configuration of the DSU100 will fabricate Shutter louvers from 1-7/8" to 4-1/2" wide and up to 36" wide, but these standards can be modified to meet your specific needs.

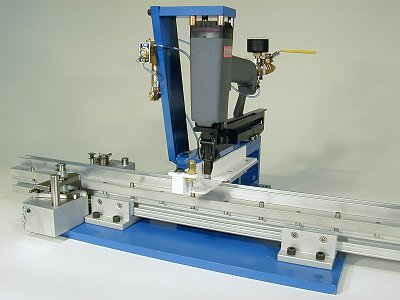

DSU200 Tilt Rod Stapling Machine

The DSU200 staples the louvers directly to the tilt rod. The tilt rod is laid into the channel which has linear bearings to allow easy movement up and down the table. The precise location for either 2", 3" or 4" spacing between louvers is set with the index dowel pins. The louver is placed into the guide, and the staple gun is triggered by the louver only when it is in the correct position. Once stapled, the ratchet system moves the tilt rod and the attached louvers to the next position.

The DSU200 is a table top mounted unit that requires 70-120 psi/3scfm pneumatic. The depth of the 3/16" wide staples and the gun position are adjustable. The standard configuration of the DSU200 will fabricate Shutter louvers from 1-7/8" to 4-1/2" wide and up to 36" wide, but these standards can be modified to meet your specific needs.

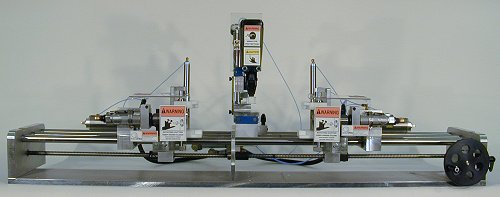

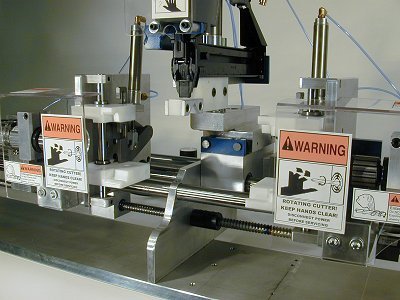

DSU310 Louver Stapler & Drilling Machine

The DSU310 Louver Stapler and Drilling Machine simultaneously attaches the tilt rod staple and drills pilot holes in both ends of a shutter louver. Set up is amazingly fast and easy utilizing Team B & B's Exclusive New Features such as an Auto-Centering Clamp System that aligns the louver top-to-bottom and front-to-back assuring exact drilling locations regardless of louver dimensions and a Self-Centering Staple Locator feature that assures that the staple is always centered on the top of the louver regardless of warp or camber in the wood. These automatic functions mean significantly reduced set up time while assuring a superb quality finished product. Two new Optional Features: (1) Custom Tilt Rod Location - allows the operator to locate the stapler along a length of the louver. (2) Hidden Tilt Rod Drill - a drilling system that adds an additional pilot hole for a hidden tilt rod.

The DSU310 is a table top unit that requires 70-120 psi/5 cfm pneumatic. The Hidden Tilt Rod Feature requires 120 Electric. The depth of the 3/16" staples and the gun position are adjustable. The standard DSU310 will fabricate Shutter louvers from 2-1/2" to 4-1/2" tall and up to 36" wide, but these standards can be modified to meet your specific needs.
