DSU-STR MORTISE & DSU-CRM TENON MACHINES


Team B & B, Inc delivers the One-Two Punch for your shutter program with our new Mortise and Tenon Machines. Designed for Wood, Pre-painted Wood or Composite (Poly-type) shutter programs, these two machines virtually eliminate dowelling on the majority of shutter panels while improving both the efficiency and the quality of your program. A Mortise & Tenon Join will set your shutter program above the rest!

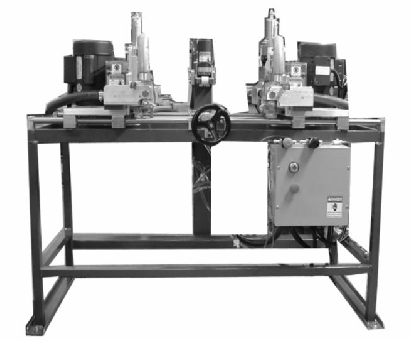

DSU-CRM TENON MACHINE

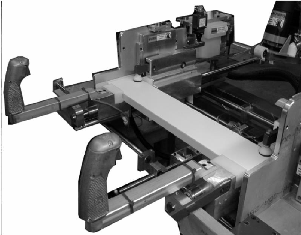

The DSU-CRM Tenon Machine simultaneously routs both the right and left tenons and the mouse-hole operation on shutter head and bottom rails. The clamping devices have been designed to accommodate the typical warp, camber and twist that may occur in natural wood products thus reducing waste. The machine will accommodate 33 inch wide finished rails and is available with a trim-down option on the tenon to assure a proper fit in the mortise without an unsightly gap. The machine is also available with either an adjustable or fixed location mouse-hole function as an option.


PRODUCT SPECIFICATIONS

     Amps/: 24 Amps @ 230 VAC RMS (Motors)
     Volts 20 Amps @ 115 VAC RMS (Routers)
     HP: Two 2 HP Motors (4 HP Total)
     Three 1-1/2 HP Routers
     Dim: 62”L X 53”W X 63”H





Key Features & Benefits

Simultaneously Tenons both ends of rail
Incorporates Optional-Use Mouse-hole
Clamping designed to address warp and camber
Centric Centering System assures accurate finish
Accommodates up to 33” Panel widths
Improves efficiency of Assembly Process
Improves Quality & Strength of Finished Product
Redundant Safety Features
Tenon Trim Function eliminates a separate step

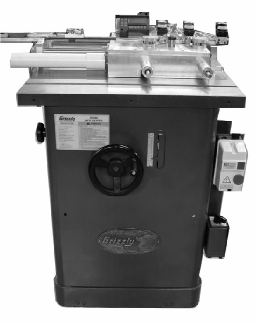

DSU-STR MORTISE MACHINE


The DSU-STR Mortise Machine routs the stile to accommodate the tenon in the head/bottom rail. This system assures a stronger shutter panel and a faster, more efficient assembly process.

Team B & B, Inc utilizes an Electronic Measuring System to assure accurate length of rout into the stile end to provide exceptional fit to fit with the rails. The rout depth, width and length are all

adjustable.  The Unique double Pin Clamping mechanism automatically adjusts to accommodate stile width tolerances of +/- 3/16ths.  In additional the clamping mechanism  provides accurate centering even when wood is cambered or warped thus, reducing waste. The machine is built around a powerful  3 horsepower Router and has been designed with Operator Safety in mind, as the Router Bits are completely shielded.  A Dust Collection System is included.

The Combination of DSU-STR Mortise Machine and the DSU-CRM Tenon Machine system takes the “guess-work” out of the assembly process and puts you on the road to success!



Specifications:

      Amps:   18 Amps
     Volts:    230 VAC RMS
     HP:       One  3 Horse-power Router
     Dim:      45L X  42”W  X  50”H
                (Recommend additional 52”
                  Product Support Table)
